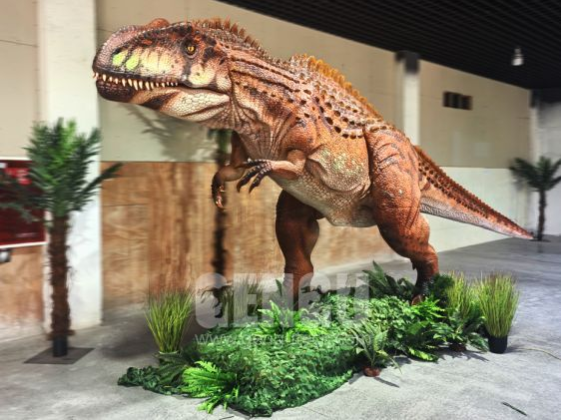

How Do Animatronic Dinosaurs Work?

Understanding the Mechanisms Behind Animatronic Dinosaurs

The Basics of Animatronic Technology

Animatronic dinosaurs use a combination of mechanical systems, sound effects, and sometimes robotics to mimic the movement and sounds of real dinosaurs. These systems are often controlled via computer programming or remote control to provide lifelike experiences.

The Role of Pneumatics in Movement

Pneumatics play a critical role in the movement of animatronic dinosaurs, allowing for fluid, lifelike motions. Air is pumped into chambers that activate different parts of the dinosaur, such as limbs or jaws.

Step-by-Step Guide to Building an Animatronic Dinosaur

1. Define Your Design and Requirements

Before beginning your project, you must have a clear concept of the dinosaur you want to create, including its size, and features, and the type of movements you desire.

2. Gather Required Tools and Materials

To create your animatronic dinosaur, you will need:

• Frame materials (PVC, wood)

• Pneumatic cylinders and valves

• Servo motors or actuators

• Control system (Arduino or Raspberry Pi)

• Power supply (batteries or mains)

• Sound module for roaring effects

• Paint and finishing materials

3. Construct the Frame

Begin building the frame according to your design. Here are the steps:

• Cut materials to size according to your design sketches.

• Assemble the frame to ensure stability and support for moving parts.

• Integrate sections for pneumatic cylinders and servos where movement is required.

4. Install the Pneumatic and Electrical Systems

Once the frame is complete, it’s time to install the mechanical components:

• Install pneumatic cylinders to the designated parts.

• Connect the control system to the pneumatic valves.

• Attach the servos to the frame where additional motion is required.

5. Program Your Control System

Utilize programming software to code the animations you want your dinosaur to perform:

• Use libraries for controlling servos and pneumatic outputs.

• Test movements and adjust the code to achieve realistic actions.

• Integrate sound effects to enhance realism.

6. Finish and Paint the Model

To make your animatronic dinosaur visually appealing:

• Apply a base layer of paint to protect the materials.

• Add details such as skin texture and markings for realism.

• Finish with a weather-resistant sealant if needed.

7. Safety and Testing

Before showcasing your animatronic dinosaur, perform thorough safety checks:

• Ensure all mechanical parts are secure and functioning correctly.

• Test the pneumatic systems for leaks.

• Run multiple tests to refine movements and audio synchronization.

Common Mistakes to Avoid

• Not considering weight distribution, which can affect movement.

• Overloading the pneumatic system beyond its capacity.

• Neglecting the sound design, which can reduce realism.

Conclusion

Building and operating animatronic dinosaurs can be a rewarding experience. With careful planning, the right tools, and attention to detail, anyone can create a lifelike dinosaur model. For premium animatronics, consider exploring Gengu's innovations and designs on our website.
